10,000 Bunded Tank

10,000 Bunded Diesel Tank

SKU: FP10,000 Categories: ,

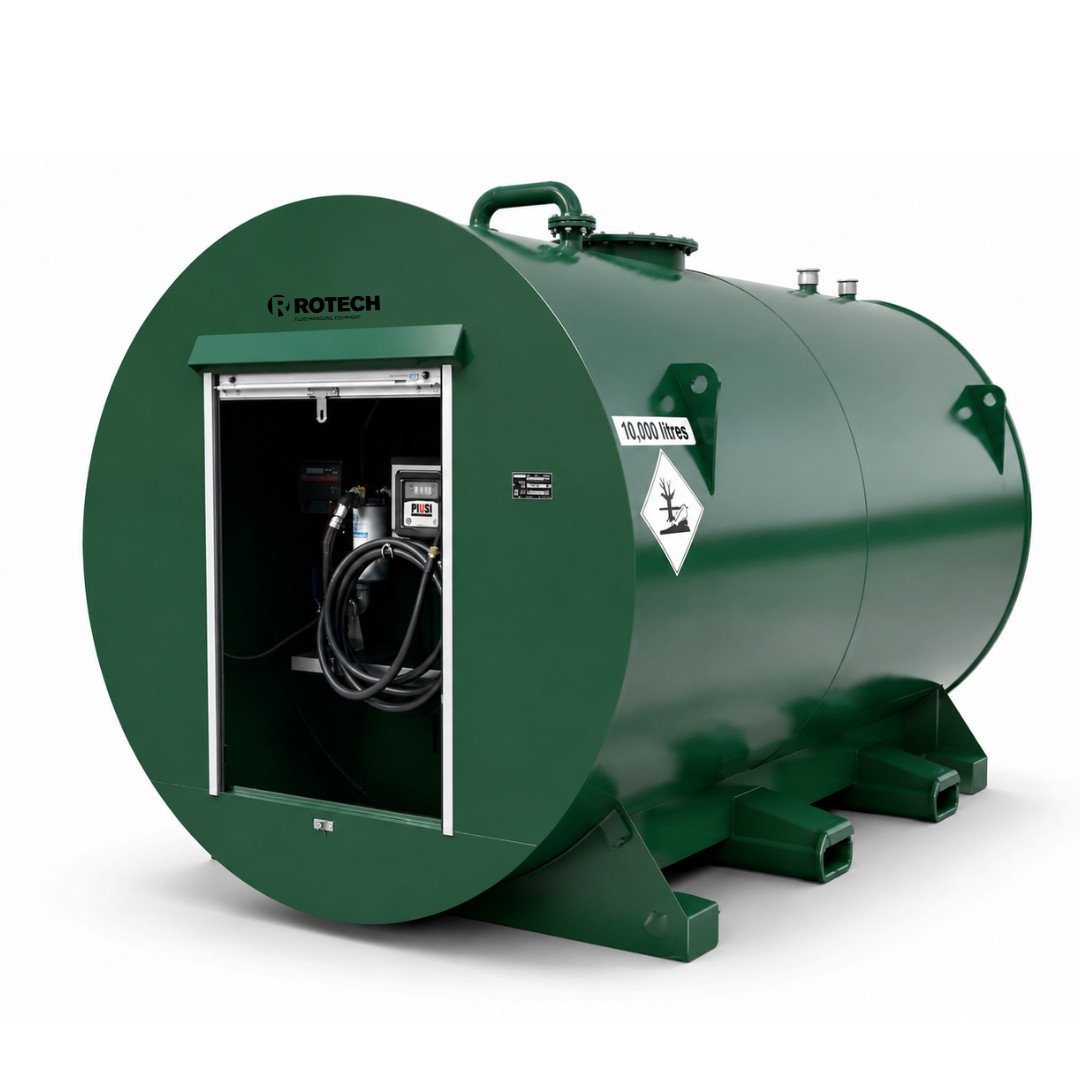

10,000 Litre Bunded Steel Tank

10,000 Litre Bunded Tank provides an excellent storage solution for diesel or HVO. The 10,000 litre Bunded Tank is supplied ready to fill with the following specification

• All 4mm steel construction for unbeatable security
• 110% bunded & fully compliant with current regulations
• Full height cabinet for easy access to fuel dispensing equipment
• Self supporting design for low cost and fast installation
• Unique external overfill prevention system for safe tank filling
• Electrical connection panel for easy connection to mains power supply
• Shot blasted and painted in 2-pack polyurethane paint

• 2” BSP offset fill point
• External overfill prevention system
• 1½” suction line dip tube for fuel delivery
• 1” port for tank level sensor
• 1” bund drain point
• ½” port for high level sensor

4137 mm
2339 mm
2416 mm
Empty Weight
2638 kg


The 1000 Litre Bunded Tank is suitable for diesel and HVO. When using with diesel or HVO, it can be combined with a number of PIUSI pumps, which can be fitted within the dedicated front cabinet to provide an all in one re-fueling station.

To view a range of pumps for diesel click here

Fuel Management

This tank can also be combined with a fuel management system, to monitor and track fuel usage. To find out more about fuel management systems click here

Hydrotreated vegetable oil (HVO)

HVO is a biofuel made by the hydrenation of veg. oil.  It is widely becoming a popular choice as a substitute for diesel as a greener or more renewable diesel choice. This 10,000 Litre Bunded Tank is fully suitable for the storage of HVO

Bunded Tanks

A Bunded tank is essentially a tank within a tank. This ensures should anything happen to either tank the fuel remains safe. A Bunded tank is designed to hold the entire contents of the inner tank in the outer tank also, so there is no fear of any losses or contamination to surrounding areas should an incident occur. Bunded tanks are a requirement in most installations as of 2023.

Fuelproof Tanks comply with current fuel storage regulations In Ireland, As bunded tanks are a requirement at all commercial, industrial and institutional installations, as well as most domestic and agricultural installations.

Find Out More

To enquire on this 10000 Litre Bunded Tank please contact our office on 053 91 35165 or by email info@rotech.ie. We provide a full tank fit out to suit your requirements. Availability is limited.

***This product is only available in Rep of Ireland & Northern Ireland***
