Quick Joint Tank Adapters

Description

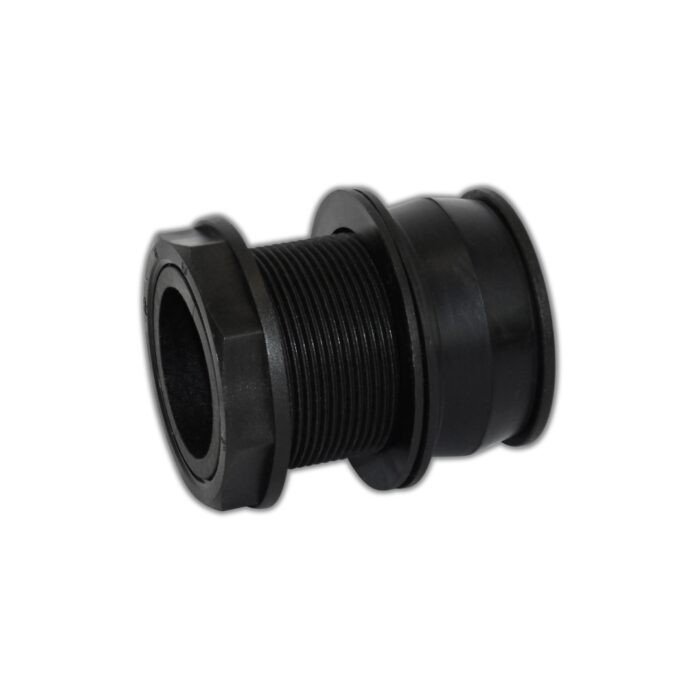

Quick Joint Tank Adapters

This IBC Thread Adapter comes with a female S60X6 thread to suit the standard bottom outlet on IBC tanks and converts them to a 1″ BSP thread for use with other fittings or cam locks. These fittings are designed for use oil, water, diesel, AdBlue, chemicals and more.

• Fast fitting from outside of tanks
• Resistant up to 4 bar
• BSP threaded port
• Locking nut
• Made from EPDM

Fast, Clean & Simple Install

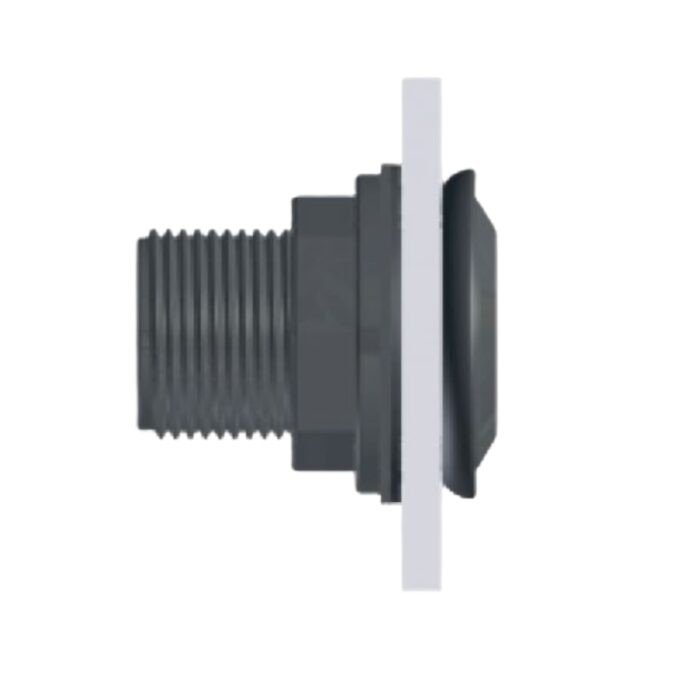

Easily installed to any tank from the exterior by simply drilling a hole large enough and inserting the adapter. On tightening the locking nut the unique design of these adapters closes in on the inner wall of the tank to form a tight seal. Once installed the adapter is capable of withstanding up to 4 bar and provides a universal BSP thread to attach hoses, taps and other equipment.

IBC Tank and Plastic tank outlets

Quick joint adapters can be used to create an outlet or an inlet on an IBC tank, single skin tank, water trough, water butt or any other similar tank. Manufactured from EPDM, these adapters are well suited to a range of liquids such as water, diesel, AdBlue, oil, waste oil, detergents and other water based liquids.

Available Sizes

The quick joint adapter comes in a range of sizes, with sizes starting at 1/2″ and working up to 2″. With each size of adapter, the corresponding size also applies to the BSP thread.
